Built on the platform of the RSC-1402CW 55” laminator, the RSC-1402HW gives the added feature of a heat assist top lamination roller. This unique feature helps activate the adhesive of pressure sensitive laminates for a smooth clear finish and shorter laminate cure times. The added heat also helps reduce the phenomenon known as "Silvering" when using some cold lamination films.

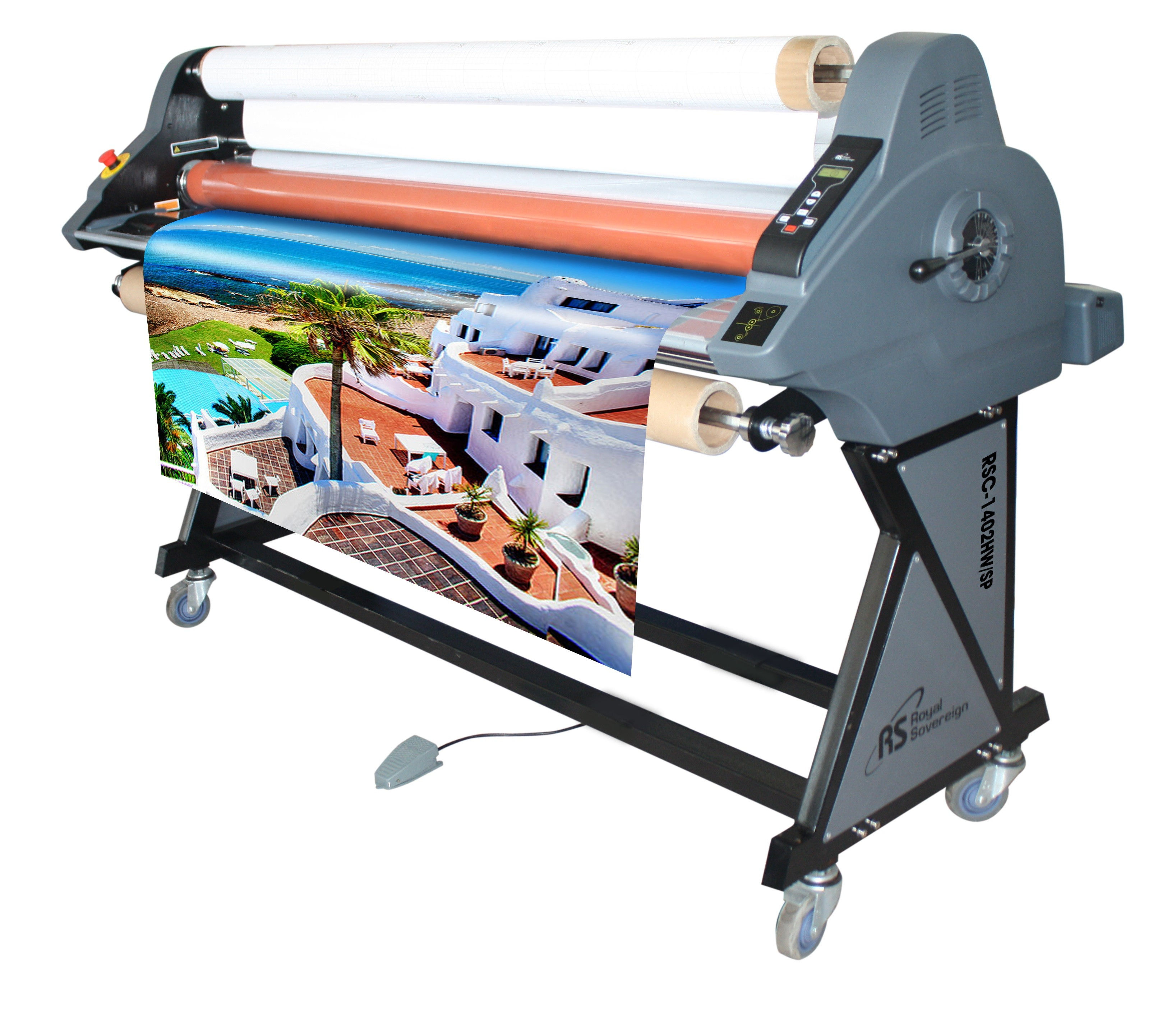

55" Heat Assist Top Roller Wide Format Roll Laminator
The RSC-1402HW is a compact wide format laminating machine that features a heat assist top roller. Great for laminating and mounting pressure-sensitive graphics or materials up to 55” wide. Use the heat assist roller to reduce silvering and make colors more vivid.
Wide Format Laminating and Mounting
•The 55” wide entry is ideal for laminating and mounting wide format graphics.
•Combine with a 54” wide format inkjet printer to provide endless finishing solutions.
•1” Nip permits laminating and mounting on substrates up to 1” thick.Easy to Use
•Quick Notch system for gap adjustment and auto-grip hubs allow quick and easy replacement of roll films.
•Easy to use digital controls and webbing diagram on front.
•Stylish rear remote control with long cord and foot pedal for hands-free operation.
•Included rear wind up assembly will wind up long runs of material after laminating helping to save time and prevent damageVersatile Laminating
•Use with pressure sensitive laminator films.
•Heat assist top roller heats up to 122 degrees Fahrenheit to improve application and make colors more vivid
•Heat helps reduce the phenomenon know as "Silvering" when using some cold lamination films.Reliable Design
•The Heavy Duty Durable construction and requires little assembly and minimal maintenance.
•Compact design with castors for easy movement around the workshop.
•The RSC-1402HW has a 1 year manufacturer warranty for parts & labor (Rollers 6 months).Model Number RSC-1402HW
Max. Laminating Width 55 inch
Film Core Size Auto Grip 3'', (2.25'' optional)
Film Thickness 1-10 mil
Drive Motor DC geared
Warm-Up Time (min.) 10 min (top roller only)
Laminating Speed ft/min 16.4
Adjustable Temperature Digital up to 122 F
Mounting Up to 1"
Take-Up System Chain link to main motor
Transport Type 2 roller
Speed Control Digital (9 settings)
Reverse Yes
Cold Lamination Yes
Cross Cutter Yes
Remote Control Yes
Foot Pedal Yes
Document Guides Yes
Rear Wind-Up Assembly Yes
Front Feeder Assembly Optional
Liner Take Up Yes
Unit Depth (in.) 30
Unit Width (in.) 69
Unit Height (in.) 49
Unit Weight (lbs.) 408
Crate Length (in.) 41
Crate Width (in.) 77
Crate Height (in.) 37
Crate Weight (lbs.) 634
Voltage AC 120V / 60Hz
Consumption (Watts) 1500W
Warranty 1 year limited warranty (Rollers 6 months)
